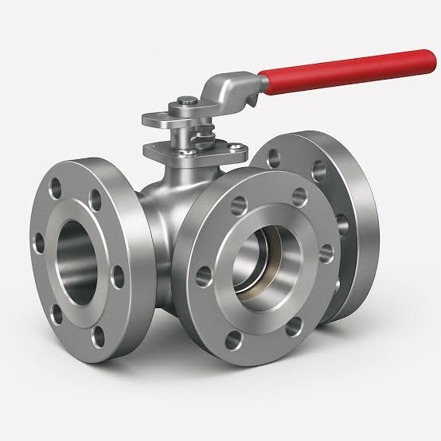

BDK Three-Way Ball Valve

Products BDK Three-Way Ball Valve (Multi-Port Design)

Multi-Directional Flow Control Solutions for Complex Piping Layouts
The BDK Three-Way Ball Valve is a multi-port flow control asset engineered to seamlessly divert, blend, mix, or isolate process fluids across complex industrial layouts. Unlike standard two-way on/off valves, this single three-port engineering solution consolidates multiple processing tasks, effectively replacing two separate isolation units and reducing pipe fittings, structural weight, and space requirements.

As an established authorized BDK valves dealer, we supply 100% genuine BDK multi-port ball valves. These high-performance components guarantee minimal fluid turbulence and bubble-tight flow isolation across refineries, power loops, chemical processing, and distribution networks.

Flow Architecture Options: L-Port vs. T-Port Configuration

Depending on your fluid dynamics requirements, BDK multi-port valves are configured into two distinct internal ball patterns:

  • L-Port (Diverting Configuration): Primarily used to shift the direction of fluid flow from a single inlet into one of two distinct outlets. It is perfect for alternating between filter beds, switching storage tanks, or bypassing processing lines.
  • T-Port (Mixing & Blending Configuration): Offers complete multi-port flexibility. It can combine fluids from two distinct inlets into a single outlet flow, divide one stream evenly into two directions, or provide simultaneous flow across all three ports.

Technical Specifications & Engineering Standards

Our supplied catalog of BDK 3-way valves is manufactured to stringent international quality codes:

Parameter Engineering Specification & Compliance Limits
Design Standards Complies with BS EN ISO 17292 (BS 5351), ASME B16.34, and API 6D
Testing Guidelines API 598 and BS EN 12266-1
Port Configuration Multi-Port (3-Way Architecture) with L-Port or T-Port ball drillings
Size Matrix 15 mm (1/2″) up to 300 mm (12″) and larger upon project request
Pressure Ratings ANSI Class 150, Class 300, and Class 600
Materials of Construction Cast Carbon Steel (WCB), Stainless Steel (CF8, CF8M, CF3M), and special process alloys
End Connections Standard Flanged Ends (ASME B16.5) and Screwed / Threaded ports
Operational Control Manual Hand Lever, Mechanical Worm Gearbox, or Fully Automated Actuator Mount

Key Features and Performance Benefits

  • Space-Saving Cost Efficiency: Sourcing a single multi-port valve simplifies procurement, lowers infrastructure weights, minimizes joint leak paths, and directly cuts down on overall pipeline component costs.
  • Zero Leakage Cavity Seals: Fitted with premium multi-seated inserts (PTFE, RPTFE, or high-performance PEEK) that tightly seal every port. This prevents trace cross-contamination between media channels.
  • Blow-Out Proof Stem Assembly: Engineered with an internally inserted, bottom-entry stem configuration to ensure total field safety, preventing dangerous stem dislodgement under sudden pressure spikes.
  • Low Operating Torque: Precision machining of the multi-port sphere ensures fluid-smooth rotation, reducing wear on internals and lowering the size requirements for automated actuators.
  • Direct Actuator Integration: Includes built-in standard ISO 5211 top flanges, enabling easy retrofitting with pneumatic double-acting cylinders or electric rotary actuators for automated process plant loops.

Common Industrial Applications

BDK multi-port valves are widely deployed in modern fluid management setups:

  • Chemical & Pharmaceutical Lines: Alternating process streams between batch reactors, mixing loops, or specialized storage units.
  • Refinery & Oil Logistics: Safe handling of heavy fuels, lubricants, and oil derivatives along multi-tank manifolds.
  • Water Treatment Plants: Directing water distribution loops, filter backwash lines, and balancing chemical dosing streams.
  • HVAC & Process Cooling: Diverting thermal fluids, chilled water loops, and boiler heat exchange systems.
